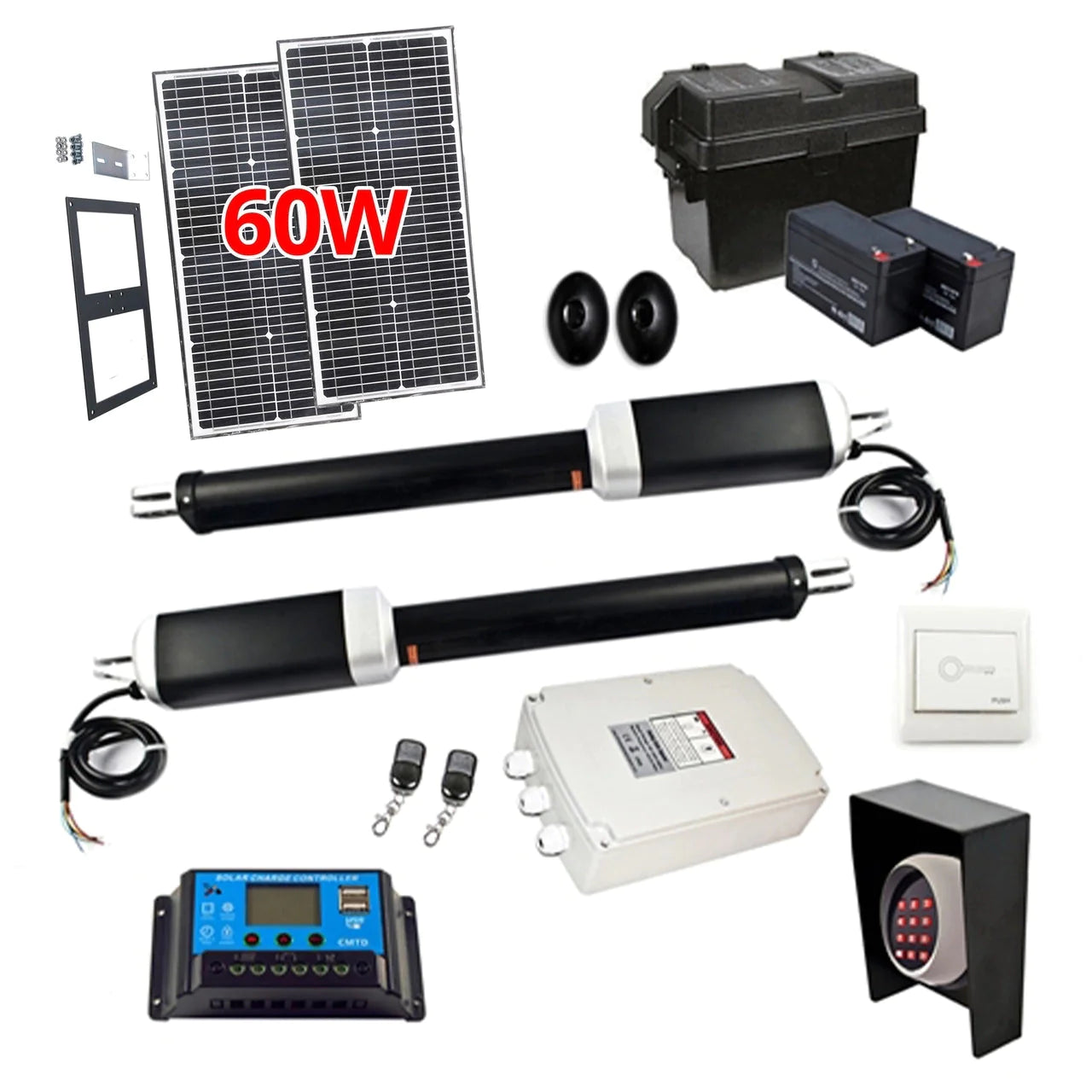

Aleko GG1300/AS1300 Dual Swing Gate Opener with Solar Kit - 60W AC/DC Automatic Driveway Gate Operator for Home Security & Farm Access

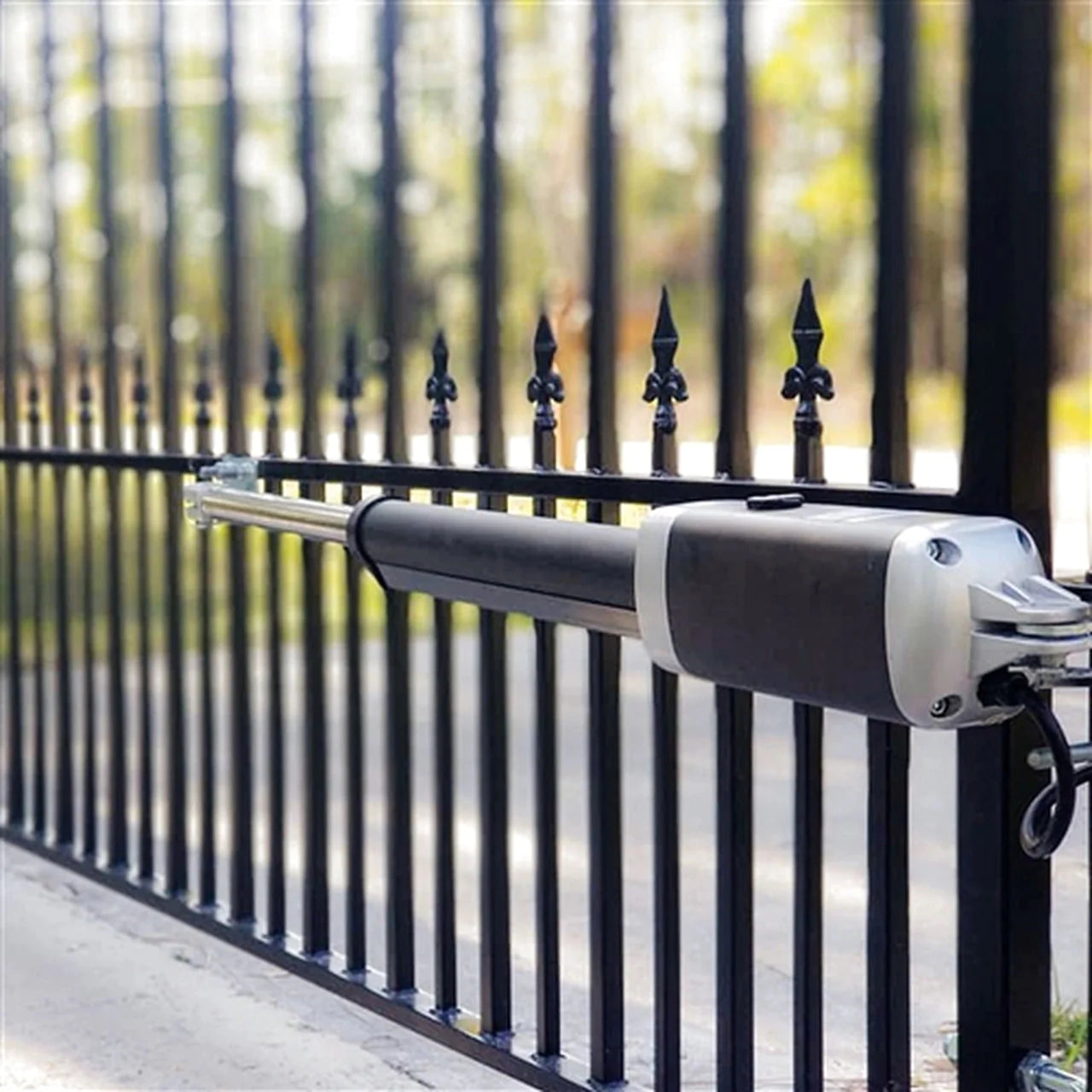

GG1300/AS1300 for Dual Swing Gate is a benefit to the residential and commercial applications. It applies remote usage and avoids manual operation that keeps you calm and dry inside your vehicle. ALEKO GG1300/AS1300 swing gate opener is having a 24V DC motor which regulate the opener. It can resist gates weighing up to 1300 lbs and length up to 20 ft (10 ft and 650 lb per leaf). The smooth running of motor gives the opener a greater life and durability.

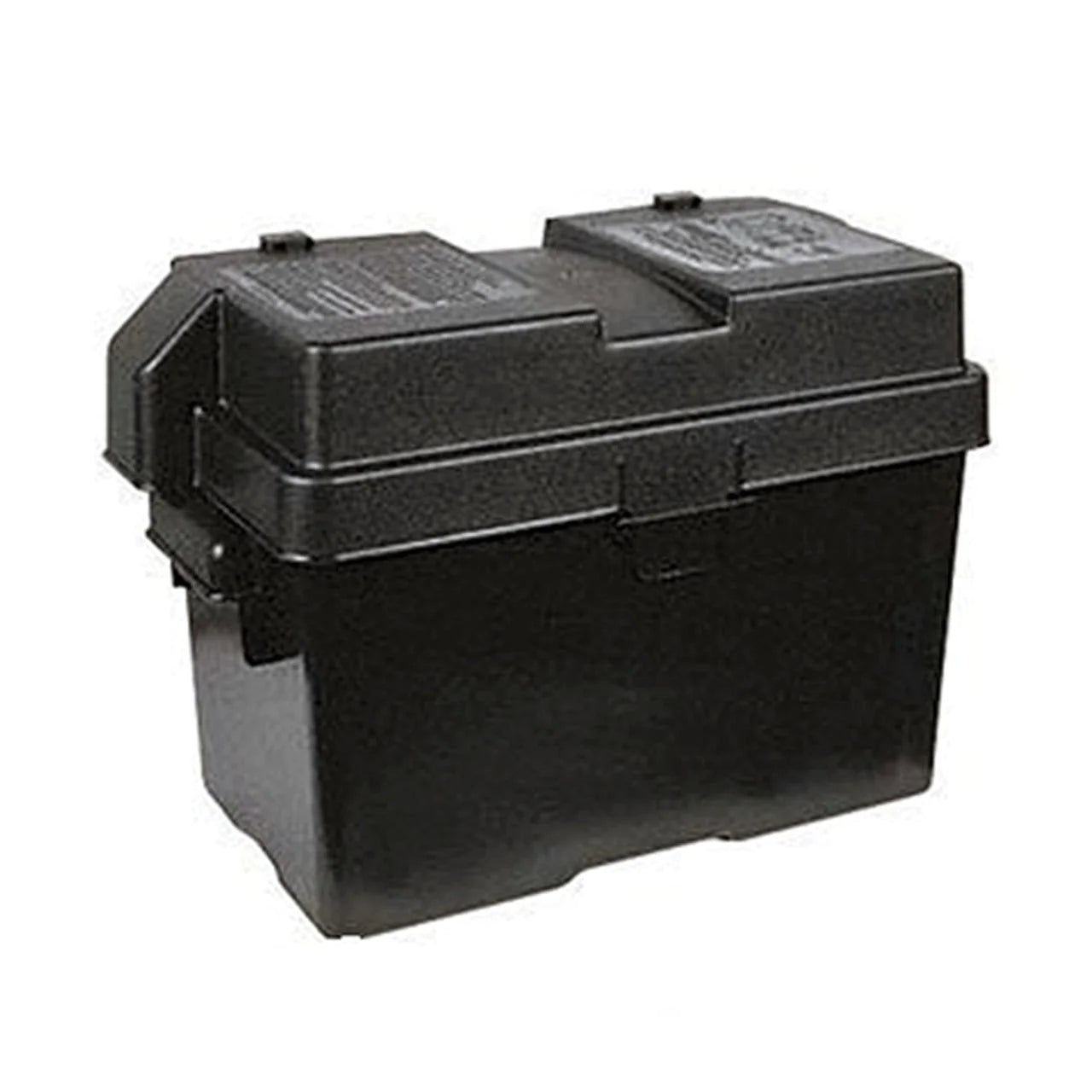

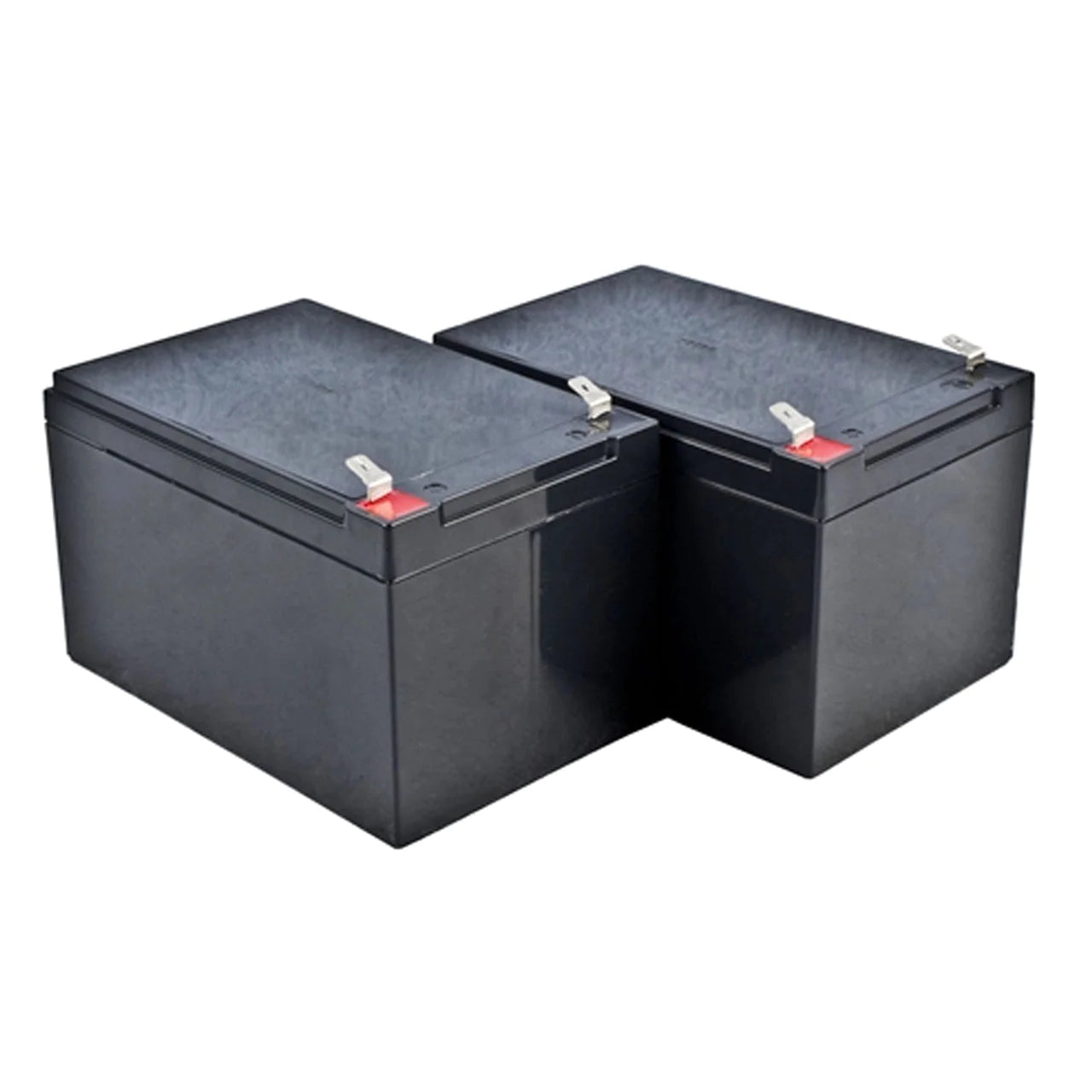

A utility backup battery is available for purchase in case of power loss. ALEKO GG1300/AS1300 swing gate opener may be installed with low cost, low voltage wiring in remote areas also.

Features

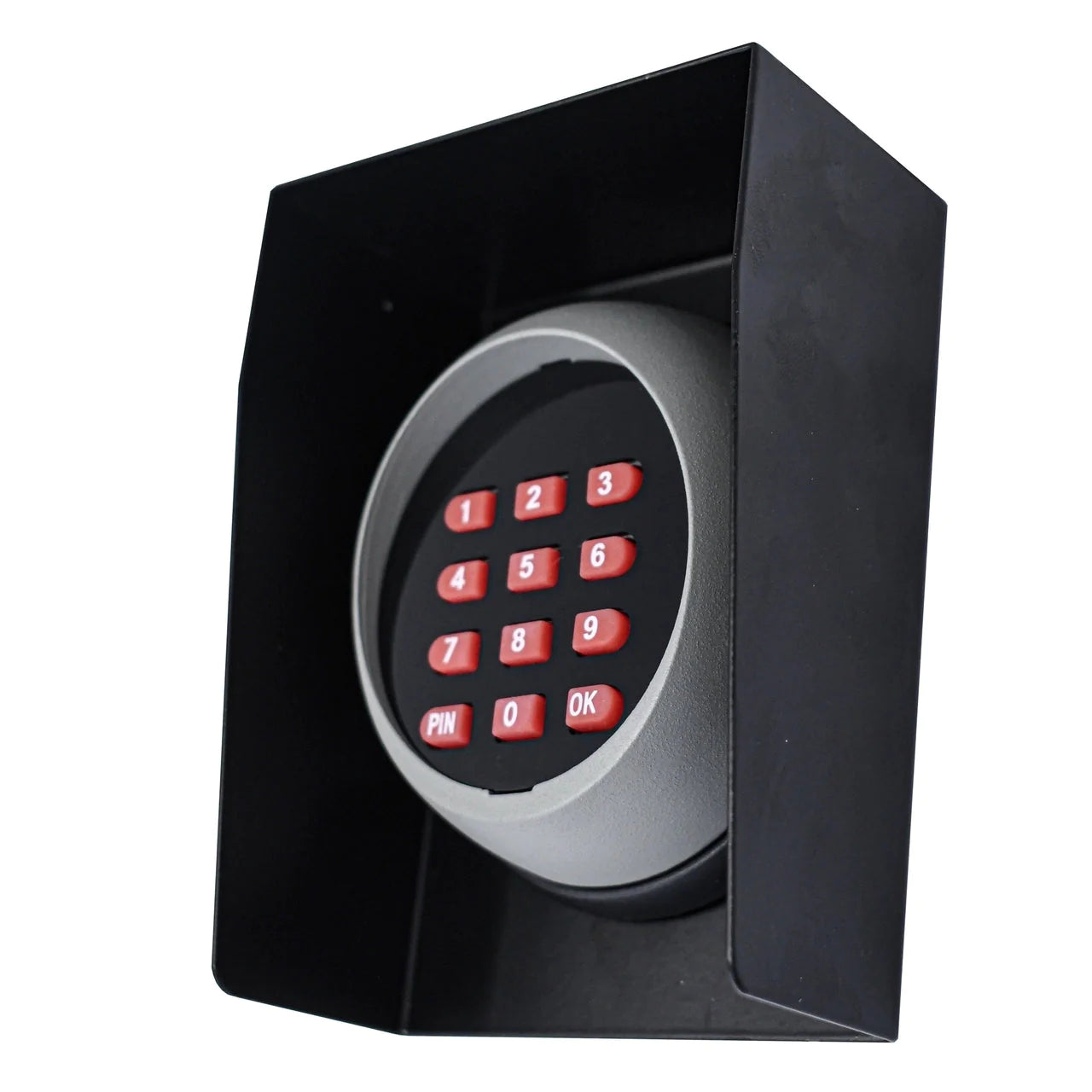

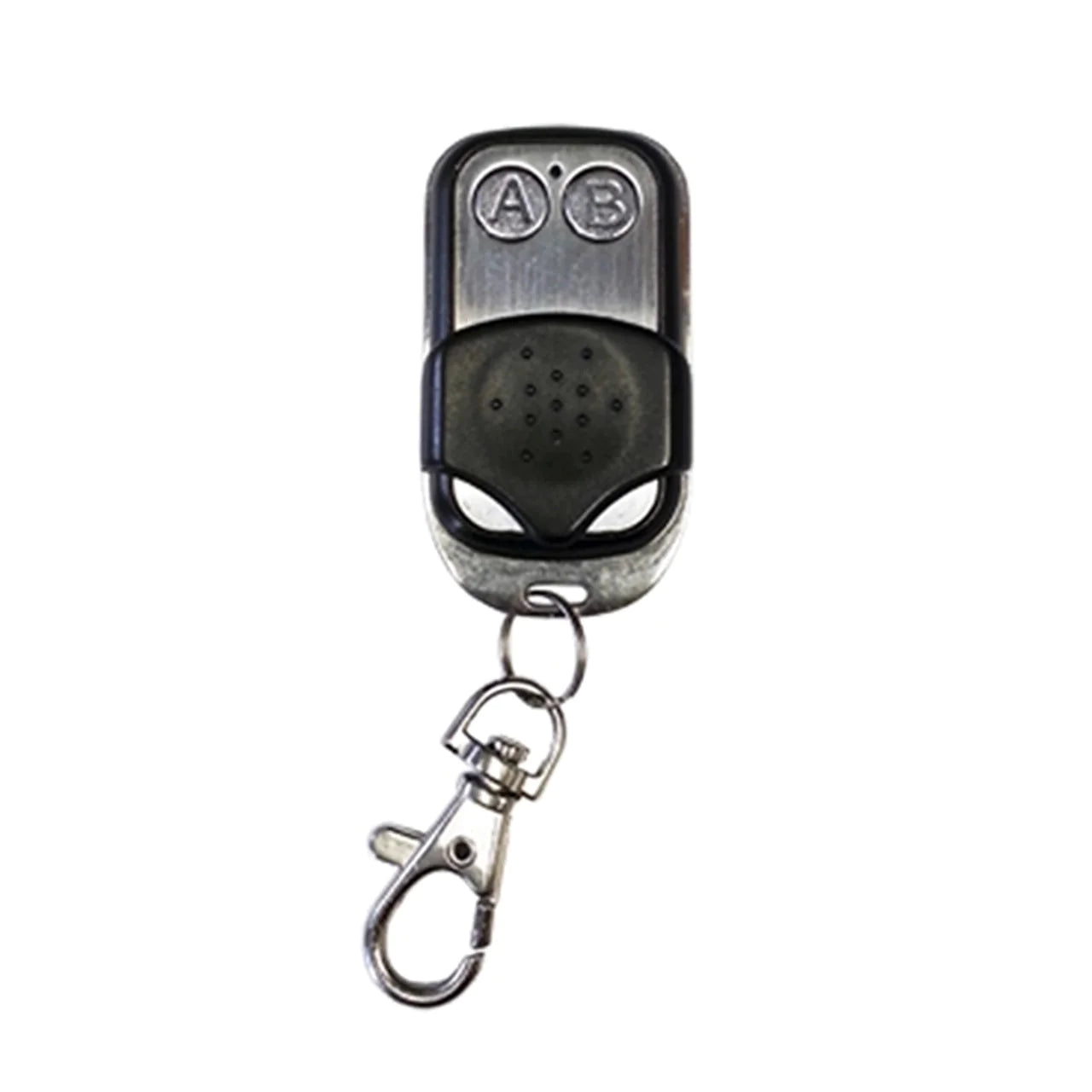

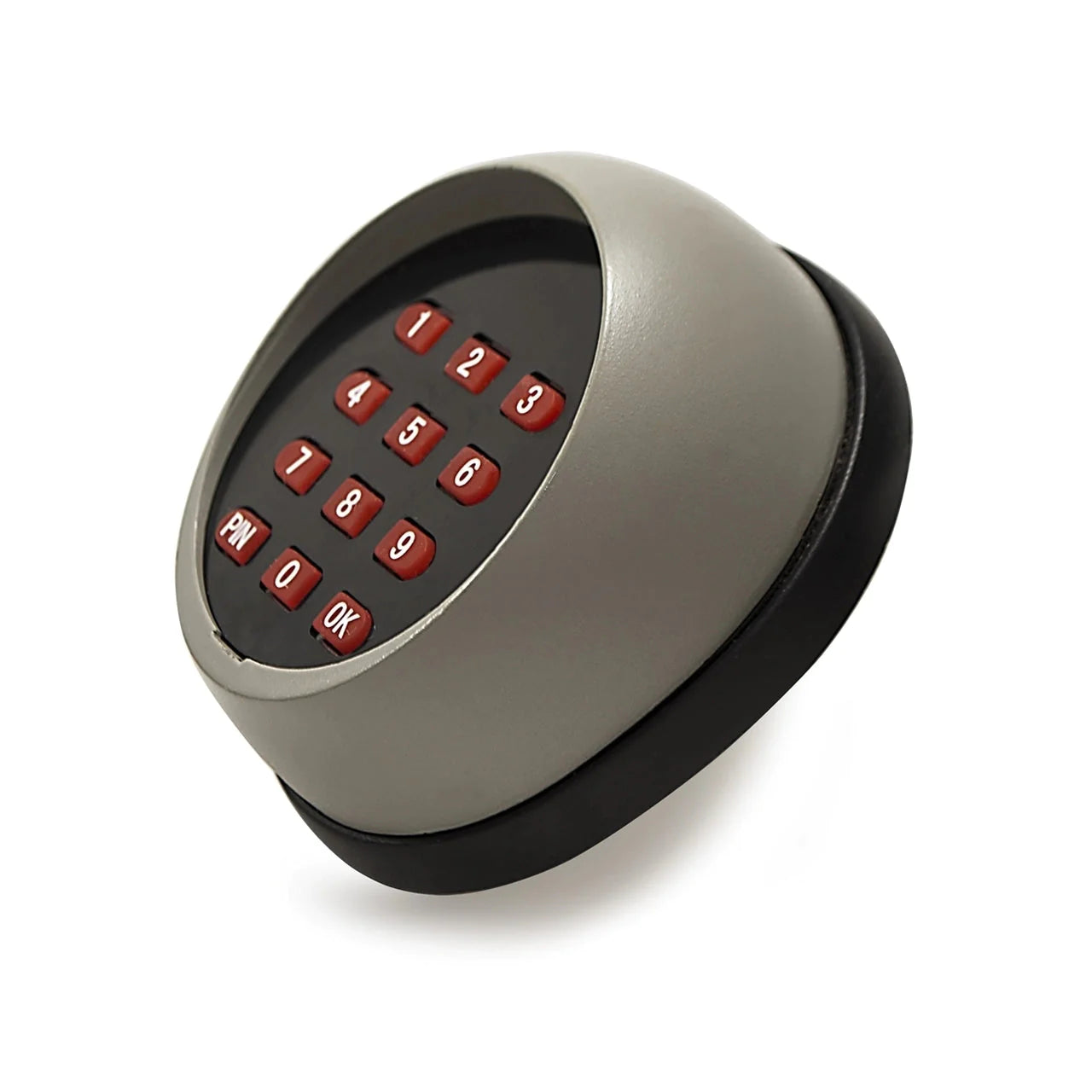

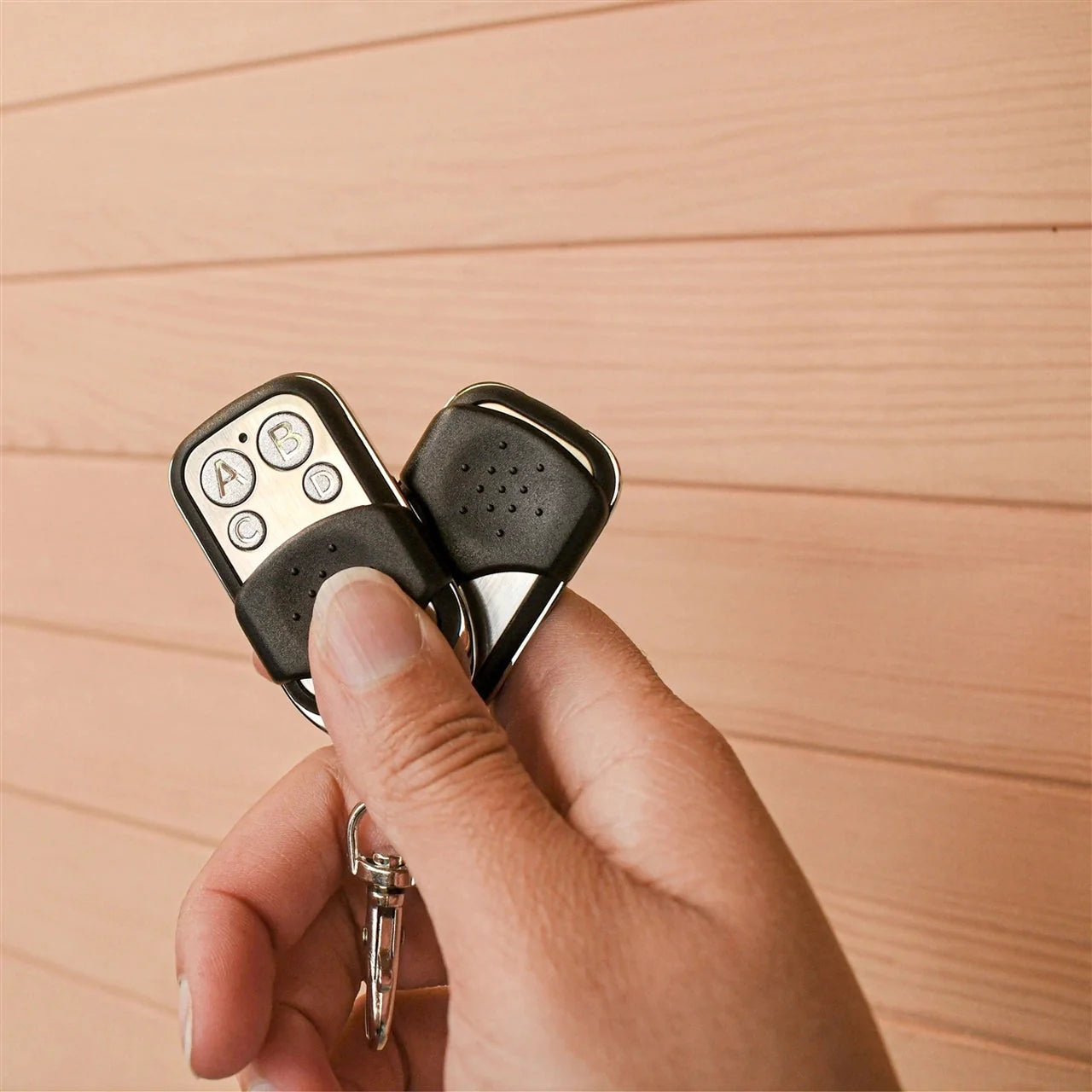

• Access your gates through remote control or keypad
• Smooth and soft start and stop function
• Emergency Release key in case of power failure
• Dual/Single gate running mode
• Optional master and slave gate running
• Adjustable opening/closing interval between master and slave gate
• Stop/Reverse in case of obstruction during gate opening/closing
• The force of the motor can be programmed
• Optional photocell protection (not included)
• Built in adjustable auto-close (programmable from 0-99 sec)
• Digital display indicates the running situation and setting menu
• Reliable electromagnetic limit switches improve adjustment of the 'open' and 'close' position
• Motor: 24 V DC, 80W per actuator, 3A current
• Power supply: 110V/60Hz (220V/50Hz - not included)
• Actuator speed: 1.6 cm/second (5/8 inch/second)
• Actuator travel: 385mm (15 3/4")
• Max Weight of each gate panel: 300 kg (650 lbs)
• Max Width of each gate panel: 3 m (10ft)

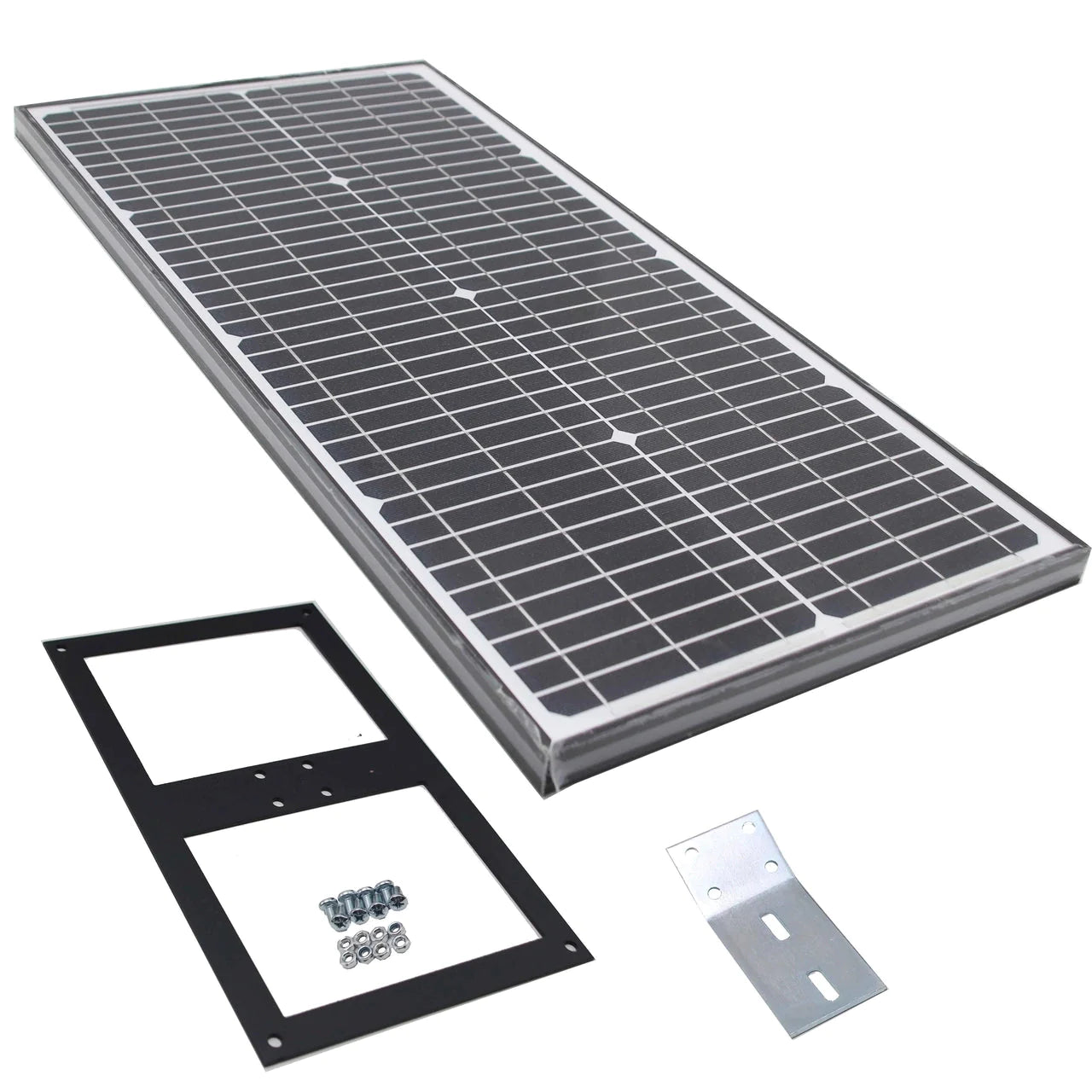

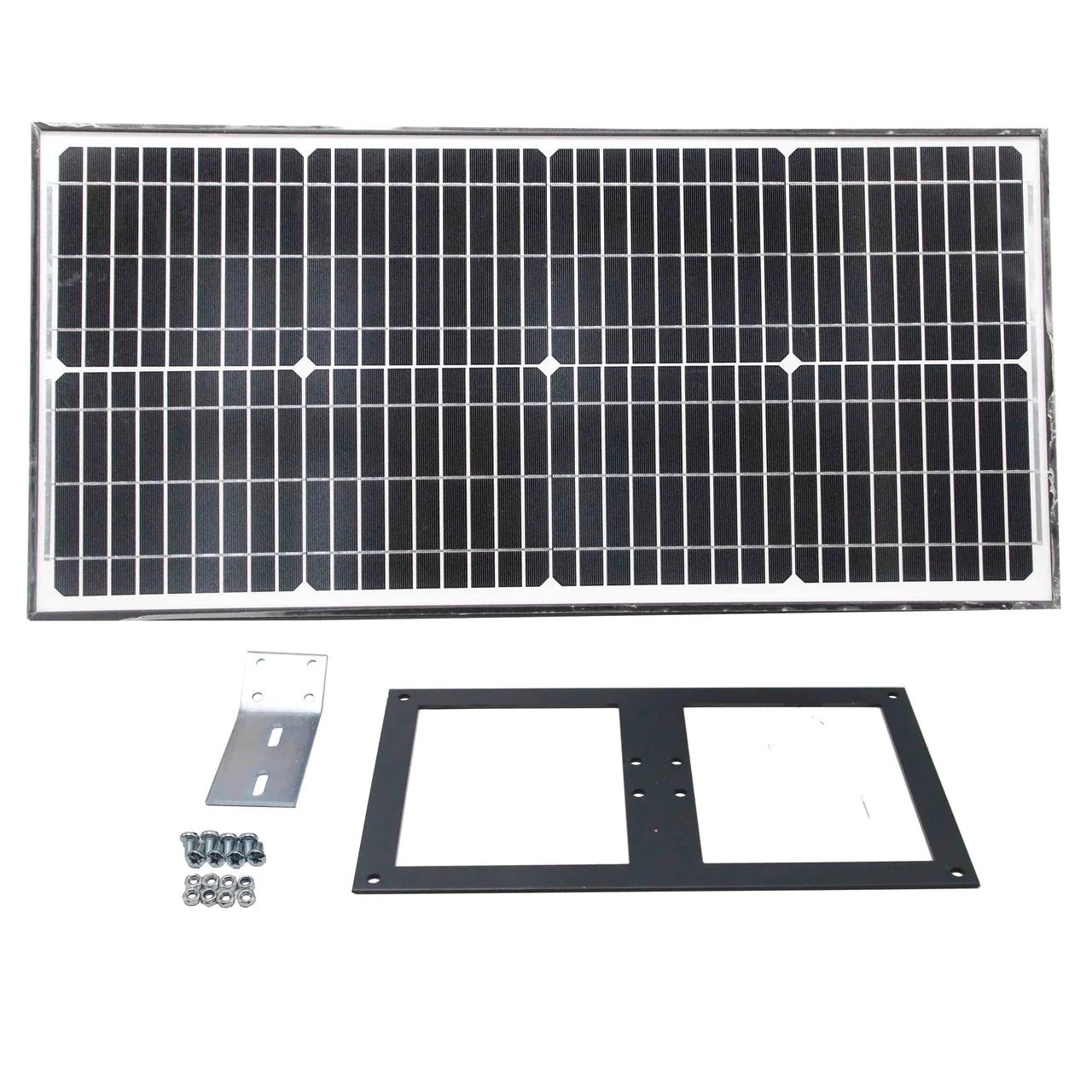

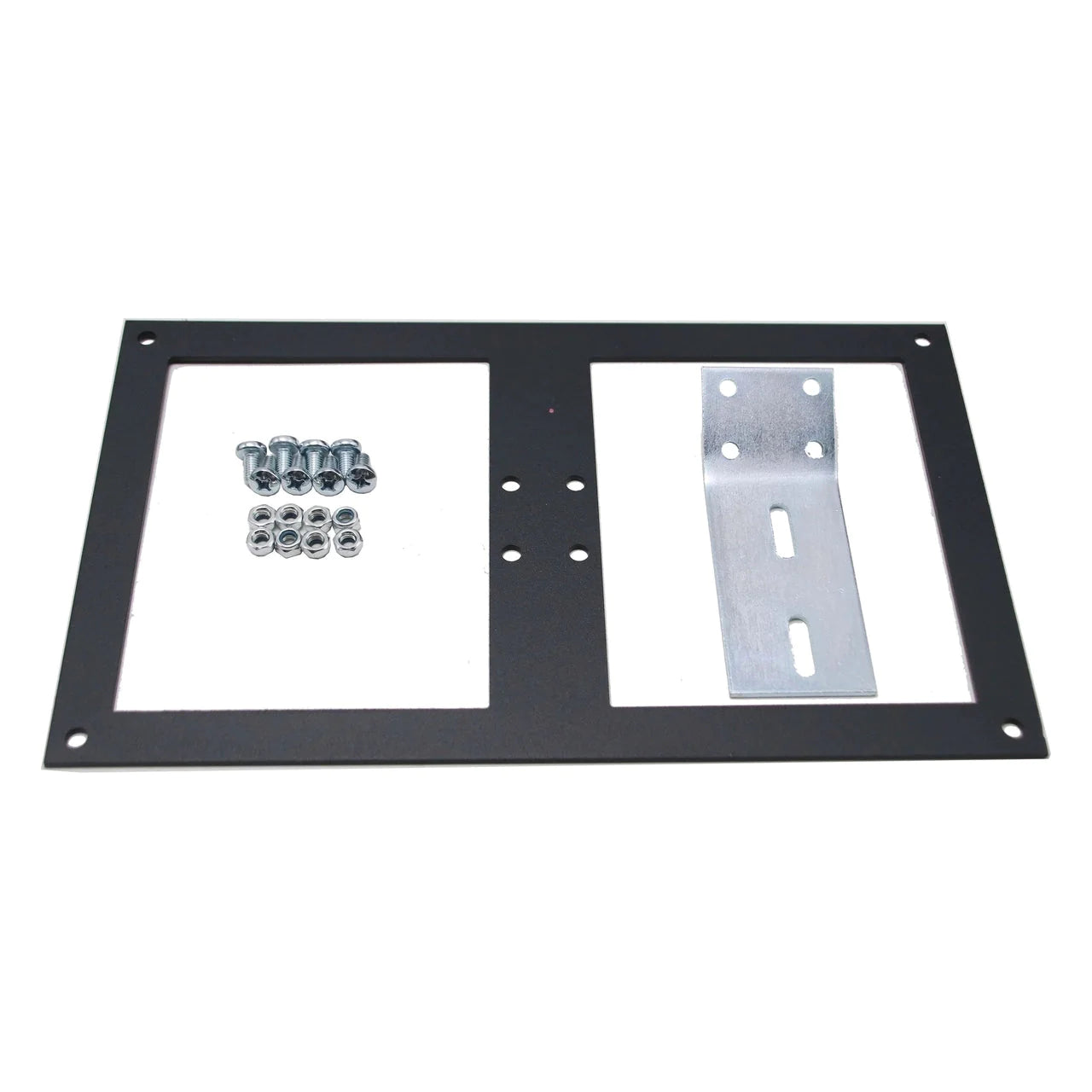

• H Bracket Dimensions for 30W Solar Panel (LxW): 15.35 x 9.6 inches
• L Bracket Dimensions (LxW): 5.3 x 1.9 inches
• Auto-closing duration: programmable (from 0 to 99 seconds)
• Ambient temperature: -20C(-4F) ~ +50C(+122F)
