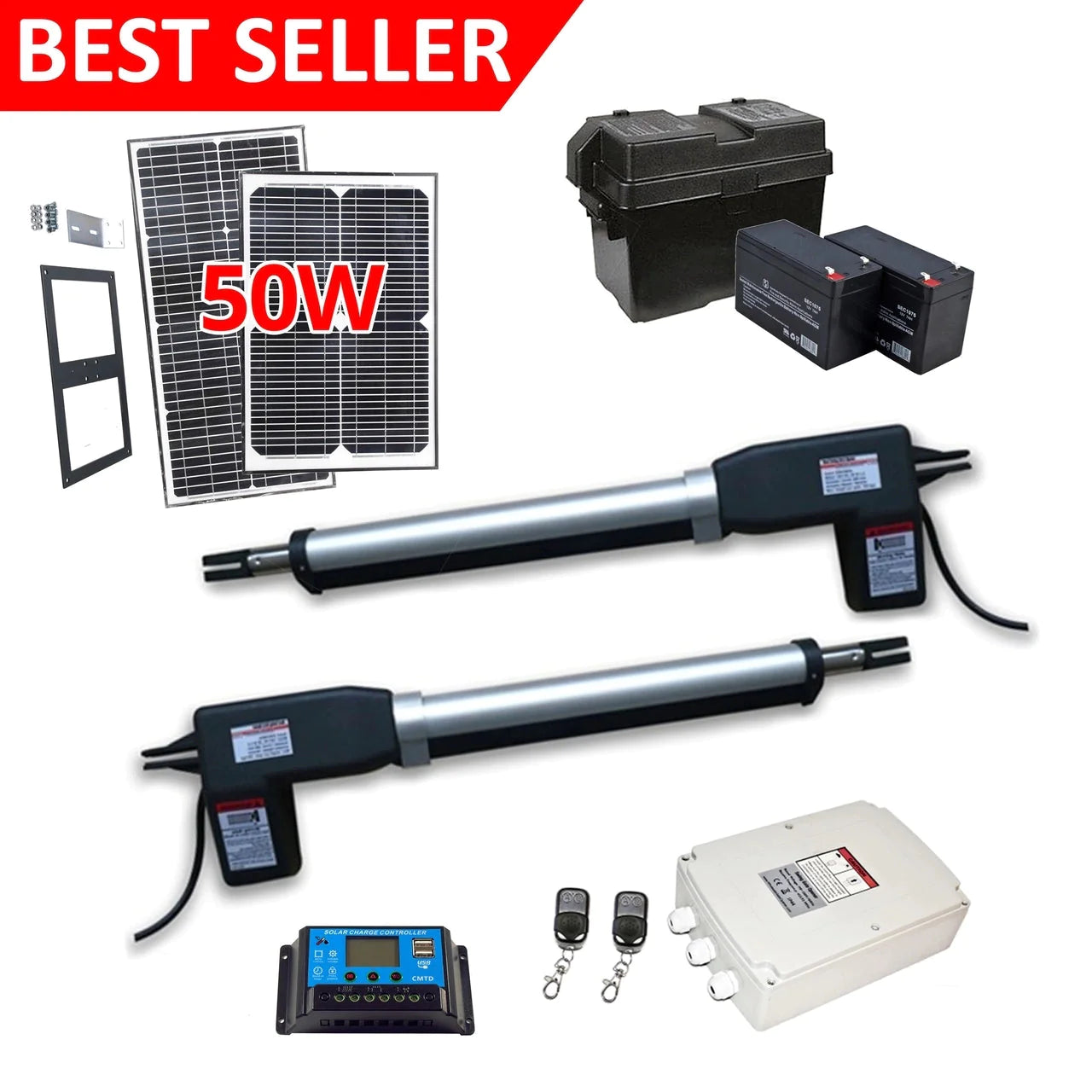

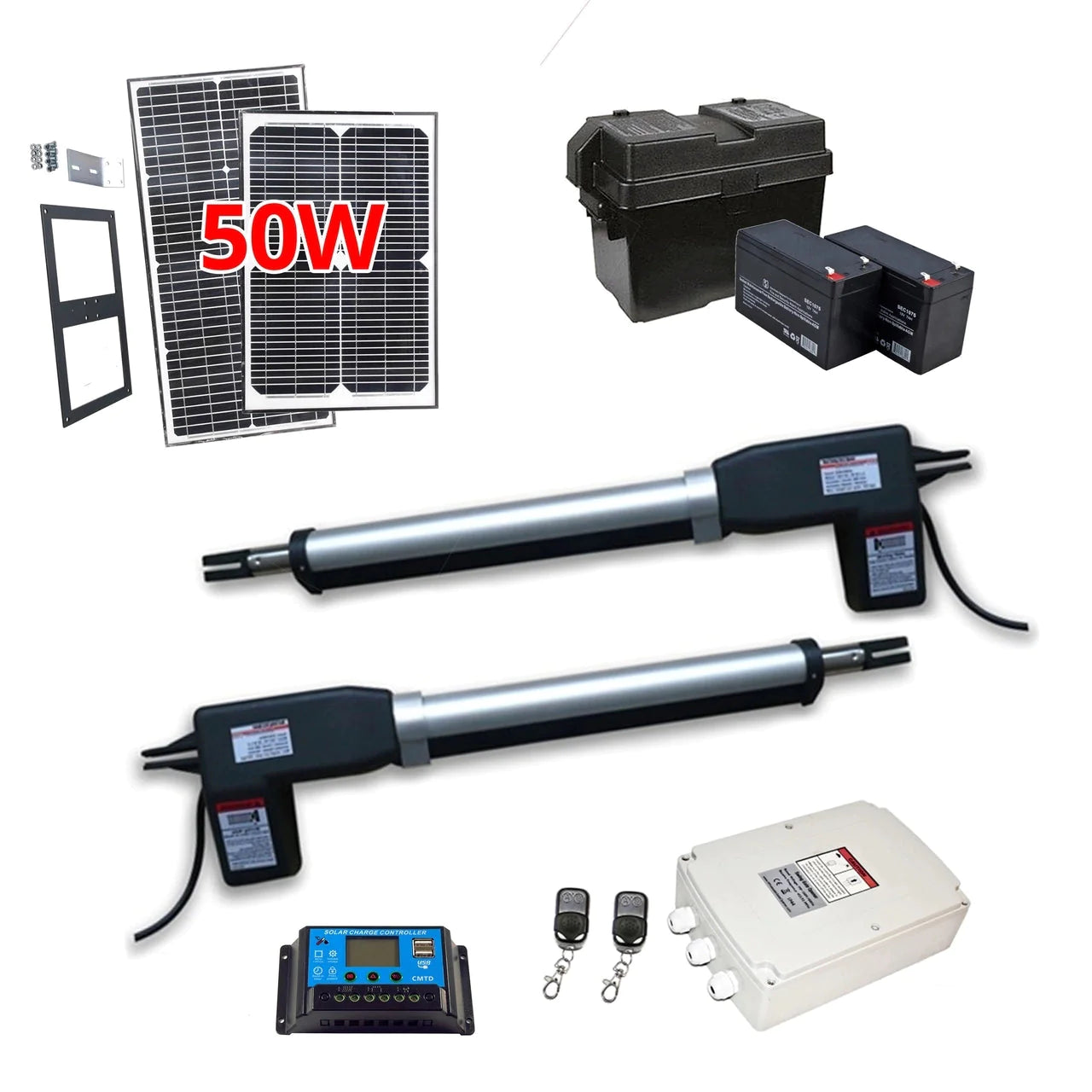

Aleko AS1200 AC/DC Dual Swing Gate Opener with 50W Solar Kit - Automatic Driveway Gate Motor for Home Security & Farm Access

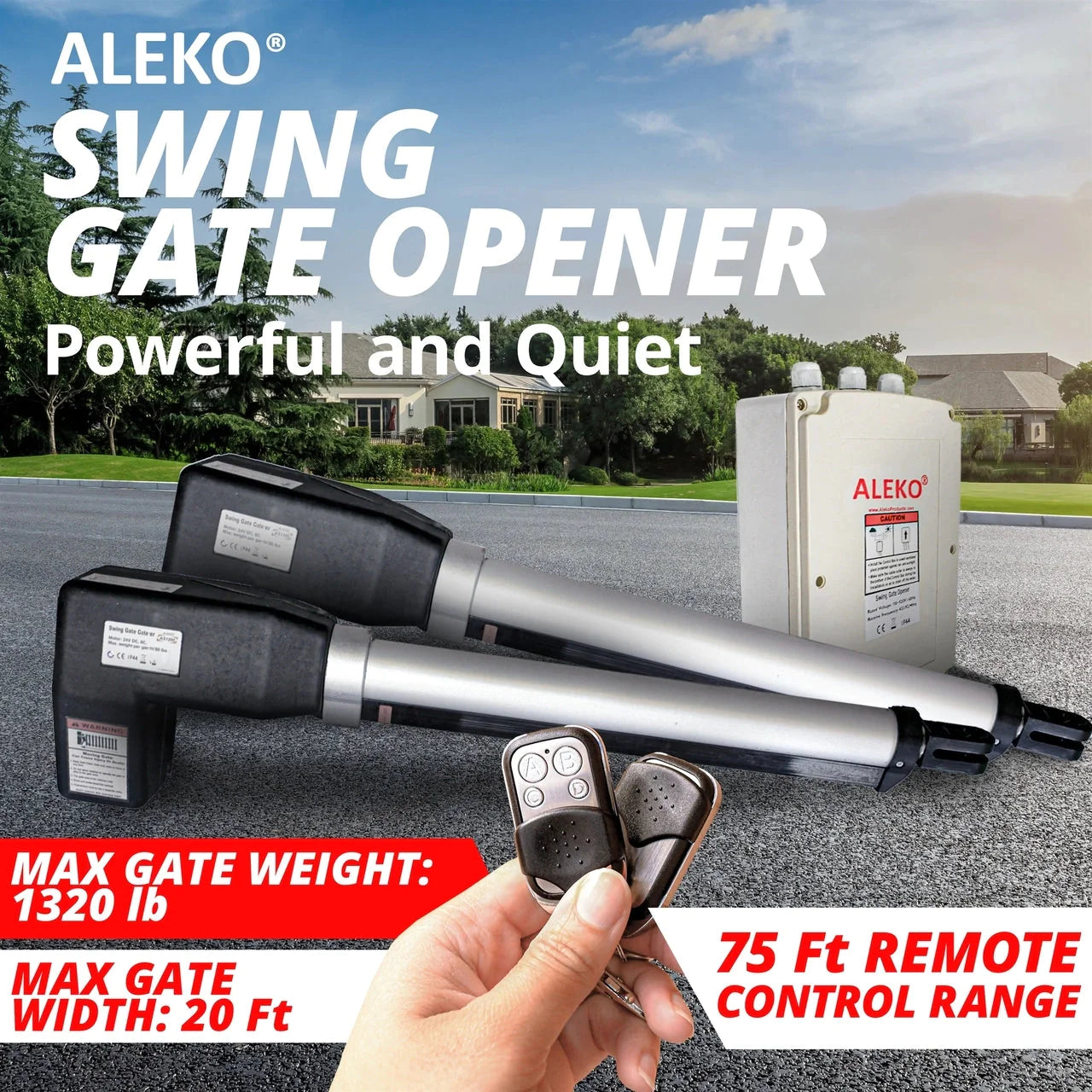

AS1200 for Dual Swing Gate is a benefit to the residential and commercial applications. It applies remote usage and avoids manual operation that keeps you calm and dry inside your vehicle. ALEKO AS1200 swing gate opener is having a 24V DC motor which regulate the opener. It can resist gates weighing up to 1320 lbs and length up to 20 ft (10 ft and 660 lb per leaf). The smooth running of motor gives the opener a greater life and durability.

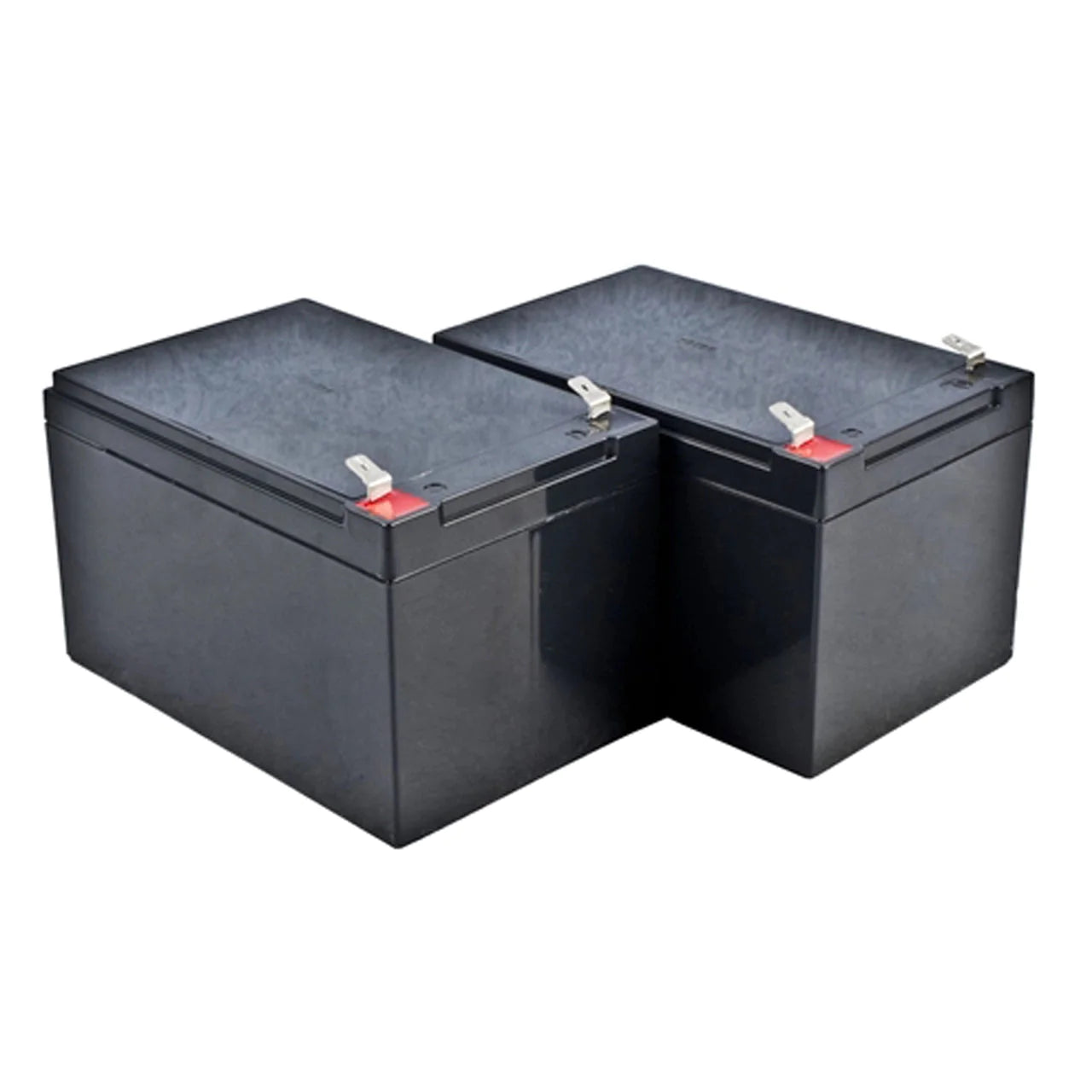

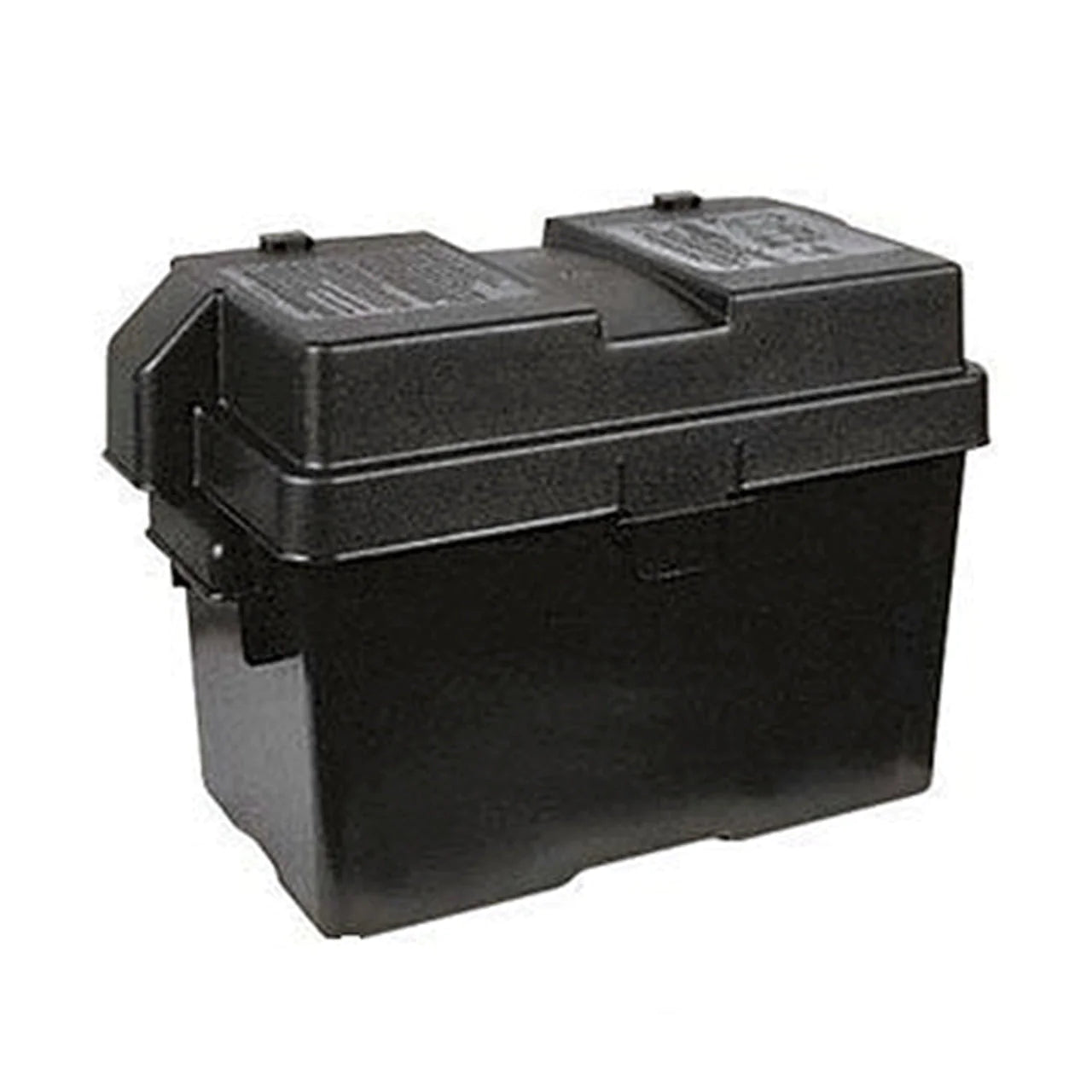

A utility backup battery is available for purchase in case of power loss. ALEKO AS1200 swing gate opener may be installed with low cost, low voltage wiring in remote areas also.

Features

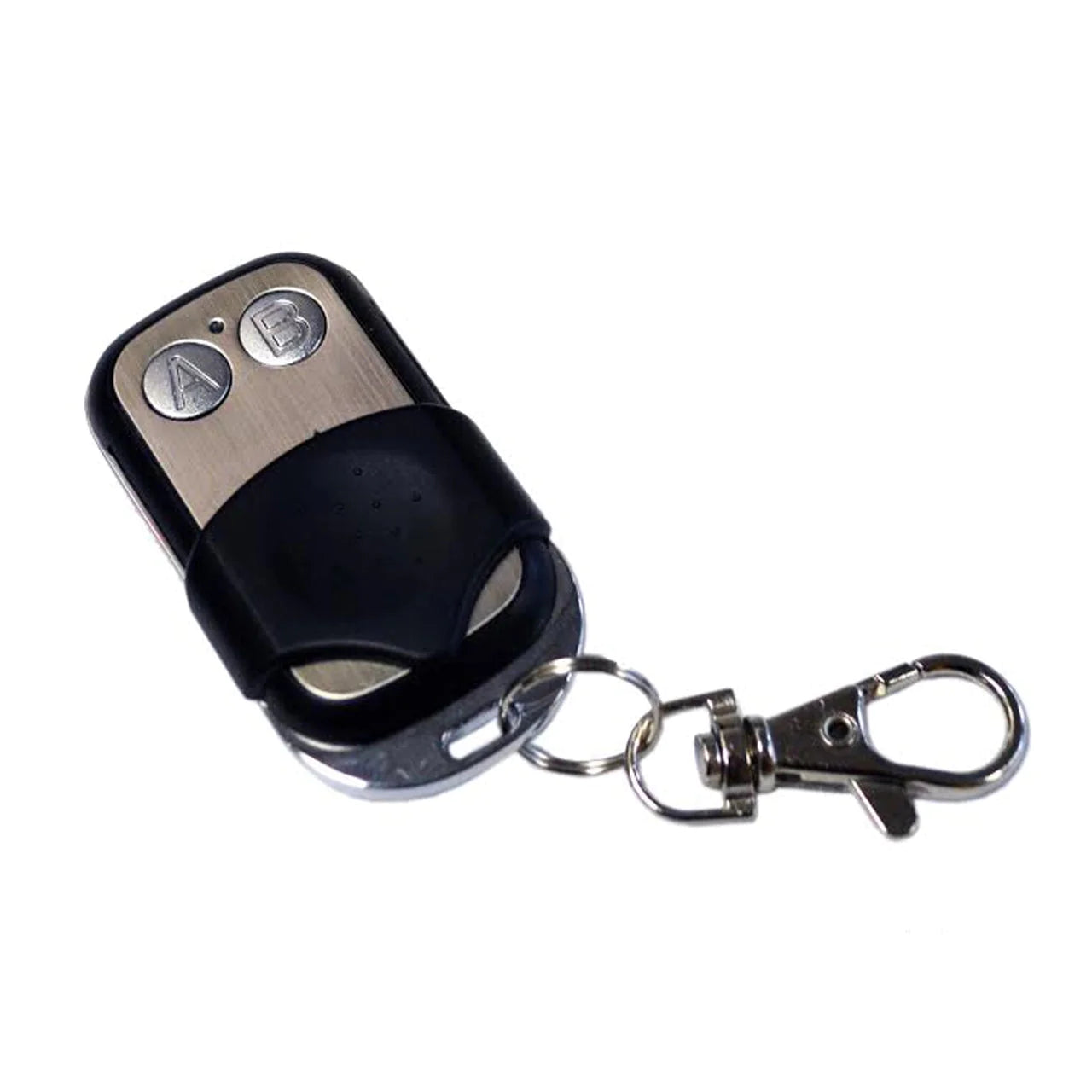

• Access your gates through remote control or keypad
• Smooth and soft start and stop function.
• Emergency Release key in case of power failure
• Dual/Single gate running mode
• Optional master and slave gate running
• Adjustable opening/closing interval between master and slave gate
• Stop/Reverse in case of obstruction during gate opening/closing
• The force of the motor can be programmed
• Optional photocell protection (not included)
• Built in adjustable auto-close (programmable from 0-99 sec)

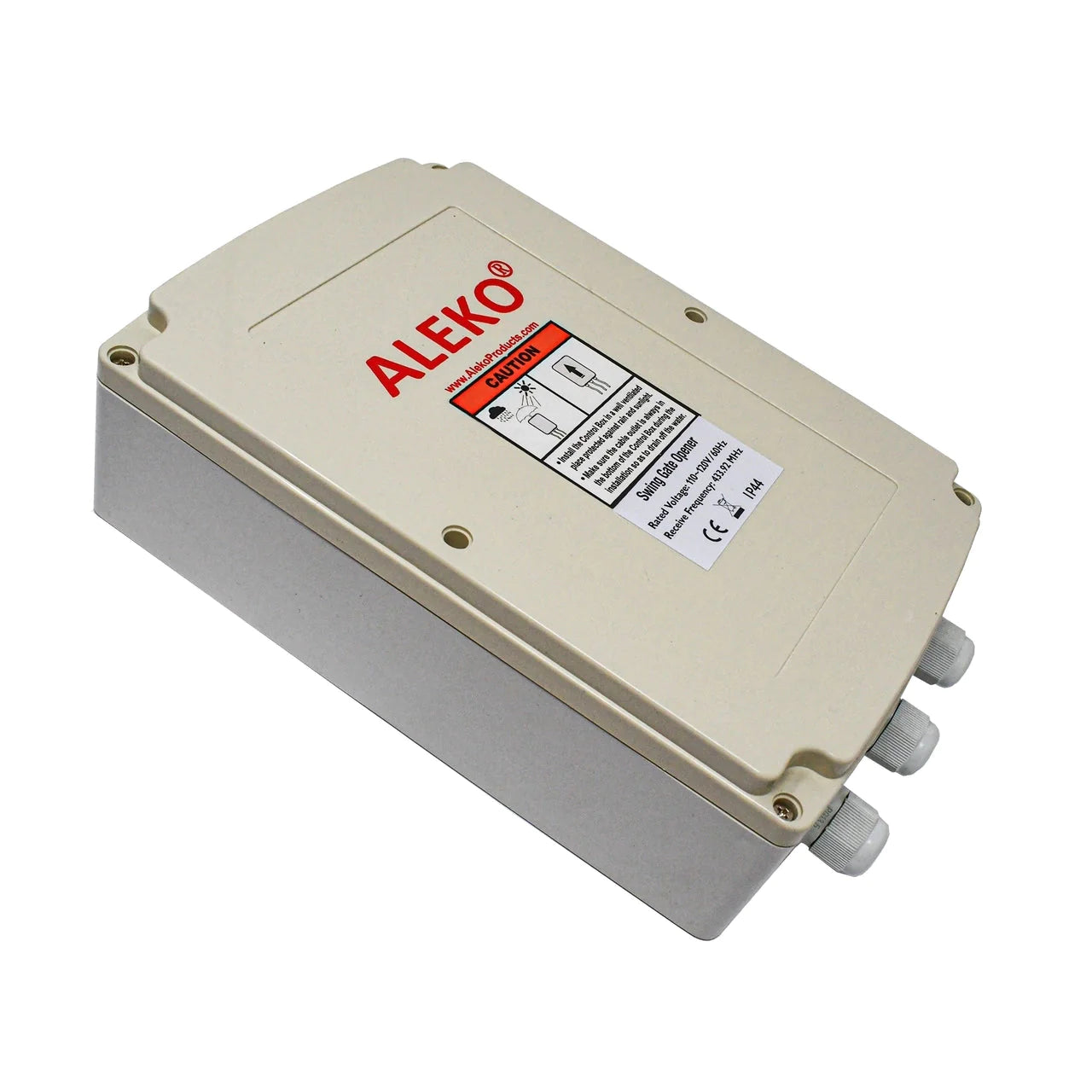

• Digital display indicates the running situation and setting menu
• Reliable electromagnetic limit switches improve adjustment of the 'open' and 'close' position
• Motor: 24 V DC, 80W per actuator, 3A current
• Power supply: 110V/60Hz (or 220V/50Hz - not included)
• Actuator speed: 1.6 cm/second (.63‚Äù/second)
• Actuator travel: 400mm (15.75‚Äù)
• Max Weight of each gate: 300 kg (660 lbs)
• Max Width of each gate: 3 m (10ft)

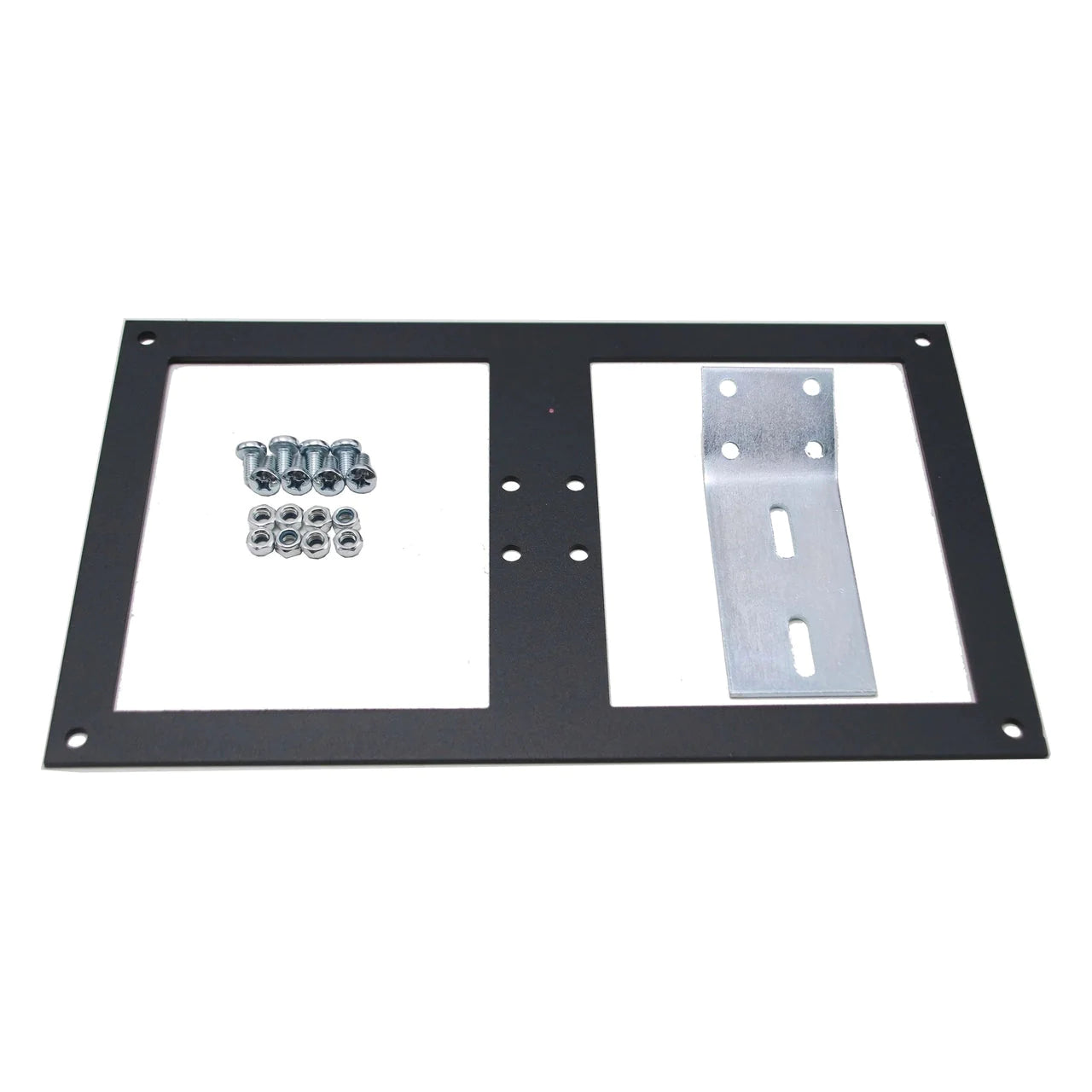

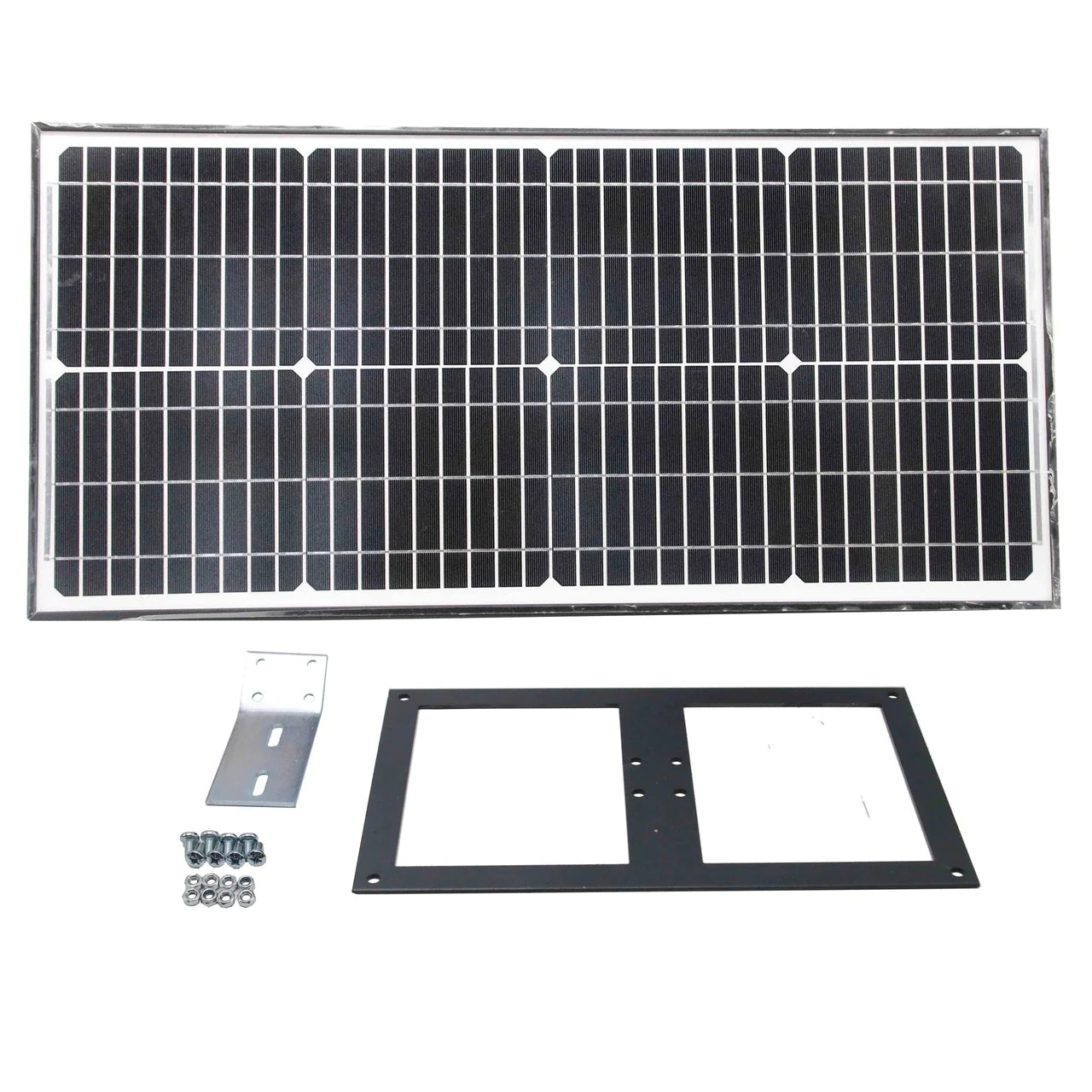

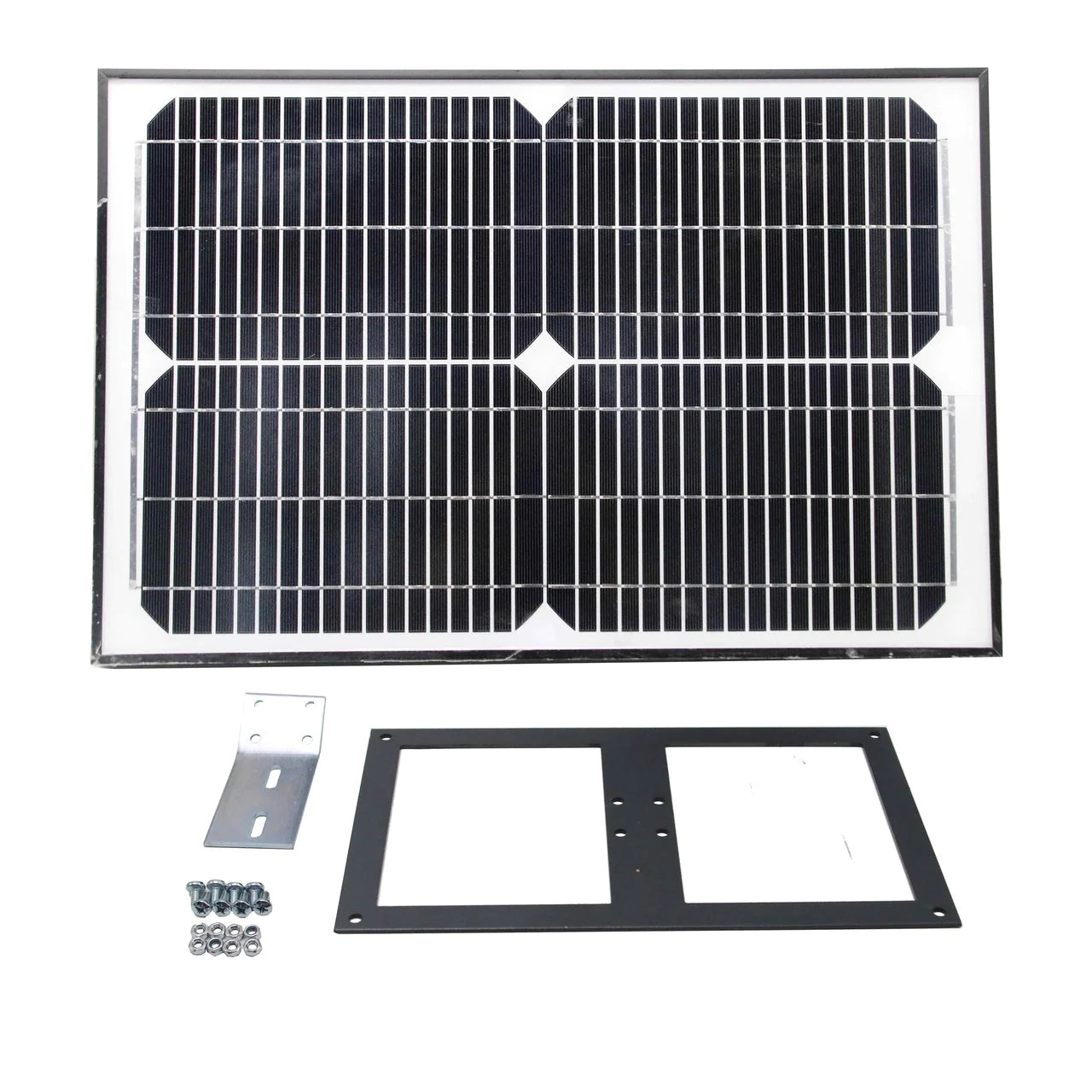

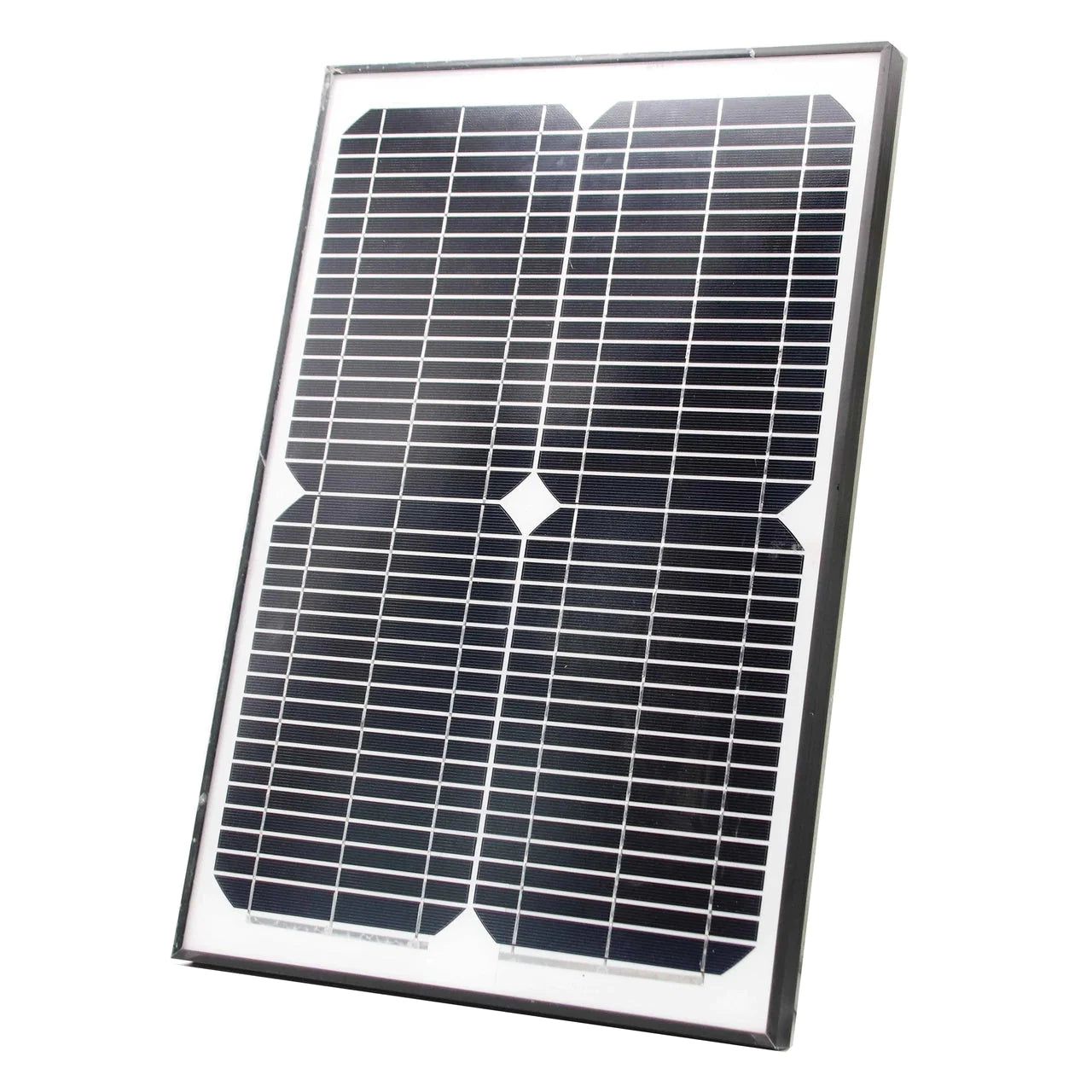

• H Bracket Dimensions for 20W Solar Panel (LxW): 12.9 x 7.8 inches

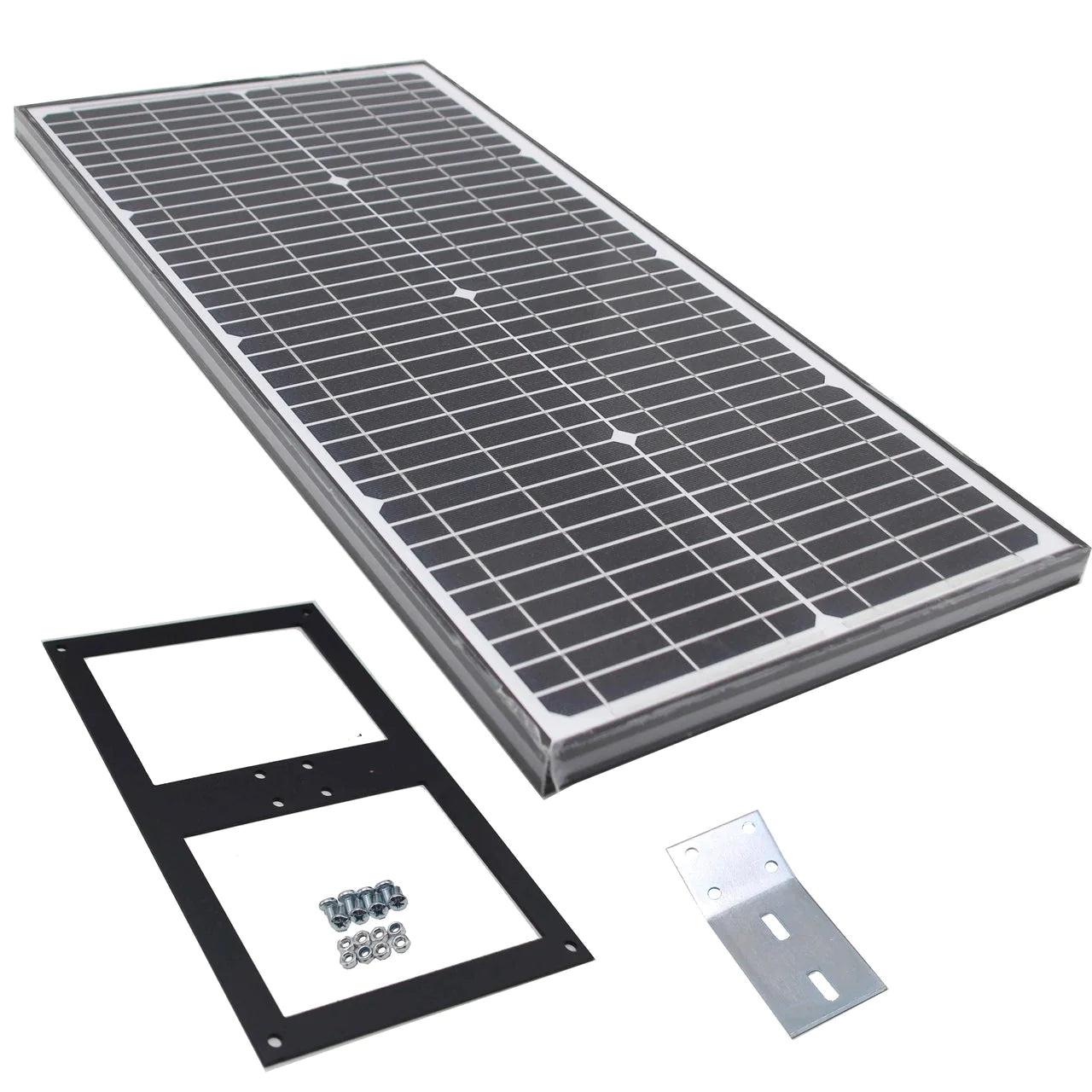

• H Bracket Dimensions for 30W Solar Panel (LxW): 15.35 x 9.6 inches
• L Bracket Dimensions (LxW): 5.3 x 1.9 inches
• Open/closing running time: programmable (from 0 to 99 seconds)
• Auto-closing duration: programmable (from 0 to 99 seconds)
• Ambient temperature: -22C- +55C
• Protection class: IP44
